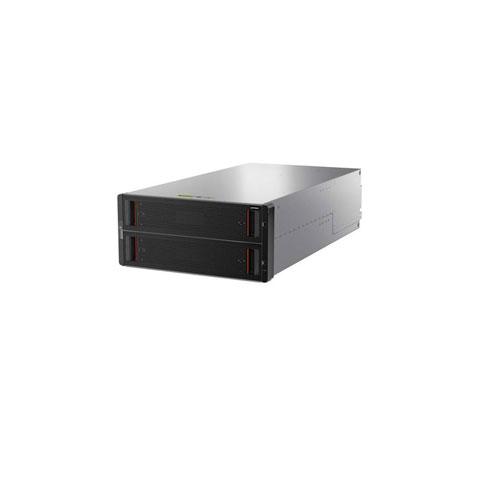

Lenovo D3284 Direct Attached Storage

Lenovo D3284 Direct Attached Storage Price in Hyderabad

• Form Factor: 5U
• Dual Expansion Modules: Dual 12Gb SAS standard, with active/active failover
• Supported Drives: 84x hot-swap SAS 3.5-inch drives:4TB, 6TB, 8TB, or 10TB 7,200rpm NL SAS HDDs; 400GB SSDs
• Storage Capacity (per enclosure)
• Up to 840TB: 7,200rpm NL SAS HDDs; up to 33.6TB – SAS SSDs
• Expandability (via Daisy-Chain): Up to 4x D3284 enclosures per HBA
• HBAs Supported: 9380-4i4e SAS/SATA HBAs for System x; N2226 SAS/SATA HBAs for System x; ThinkServer 9300-8e PCIe 12Gb 8-Port External SAS Adapter by LSI
• RAID Support: RAID-0, 1, 10, 5, 50, 6, 60 (HBA-dependent)
• Power Supplies and Fans: 2x 2214W (1+1) hot-swap/redundant 80 Plus Platinum power supplies; 5 hot-swap/redundant fans
• Back Panel Connectors: Each expansion module (x2) includes: 4x ports: 3x 12Gbps Mini-SAS HD (SFF-8644) per ESM; 1x RJ45 Ethernet port for management
• 5U/Height: 219mm (9.5 in.); Width: 483mm (19 in. IEC60297 rack compliant); Depth: 933mm (36.75in.)/Weight: min. 64kg (141 lbs); max. 131kg (289 lbs)
• Limited Warranty: 3-year Limited Warranty, 9x5 Next Business Day Onsite (upgradeable)
